ISOMETRIC PIPING TEMPLATE

Special Price $17.05 Regular Price $18.95
In stock
Product Code
R43
R-43 ISOMETRIC PIPING TEMPLATE

by Rapid Design

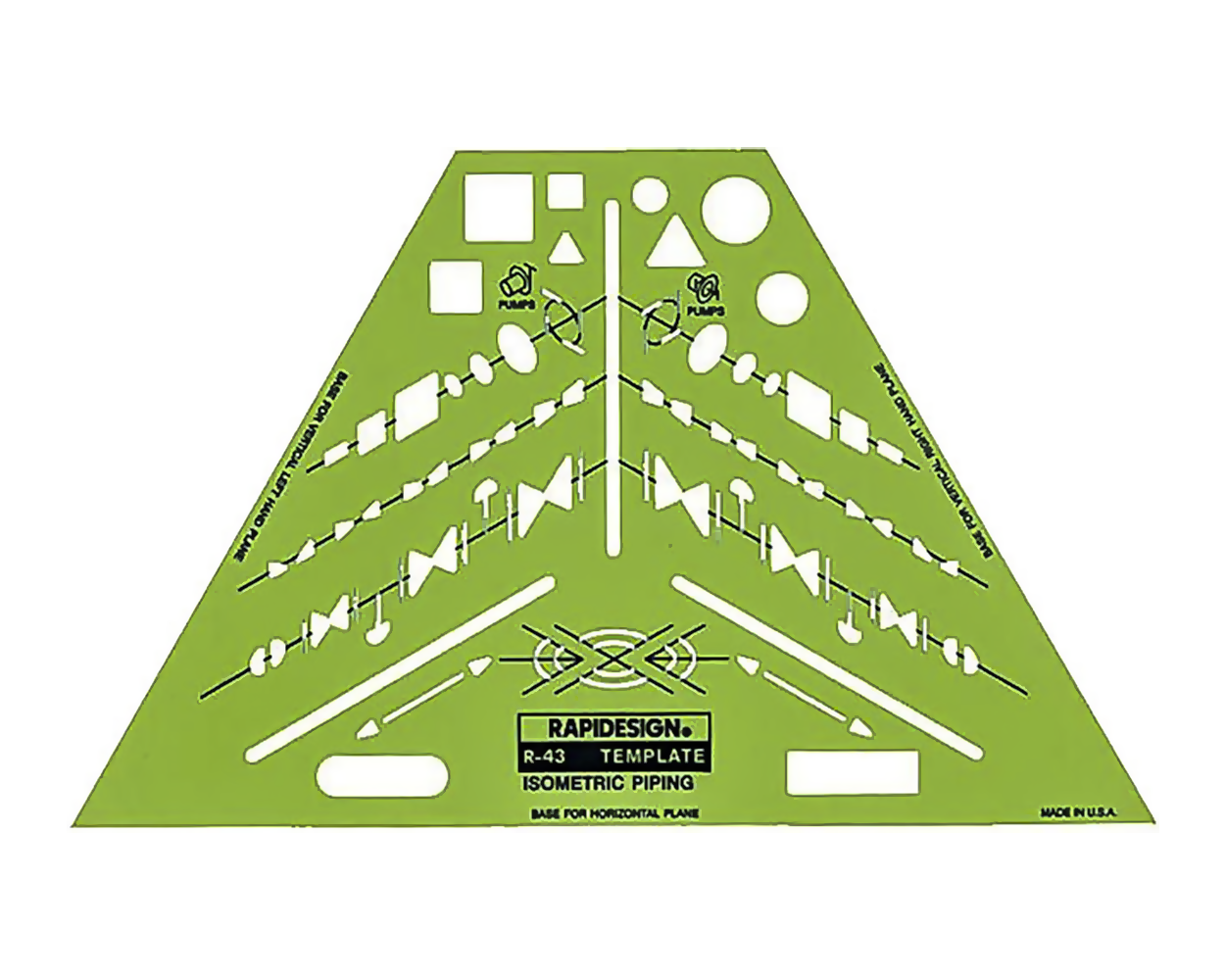

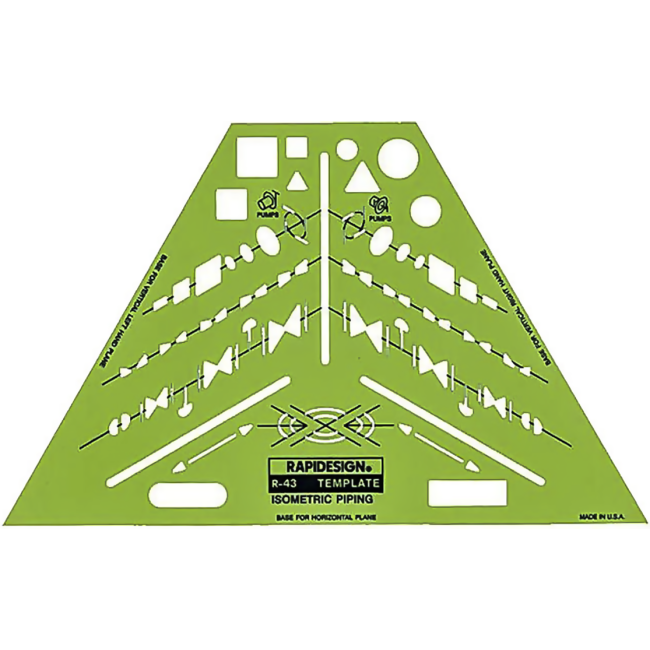

Facilitates easily understood perspective drawings in construction work of refineries, gas and water distribution systems, sprinklers and other complicated piping work. Contains symbols of all components of piping systems; valves, flanges, elbows, reducers, caps and pumps. Template can be tilted three ways: one each of the three planes of a perspective view. Size: 8 ½" X 5 ¼". Thickness: .030".
