R-39 Rapidesign Process Flow Planner Template
Special Price $15.25 Regular Price $16.95
In stock
Product Code
R39

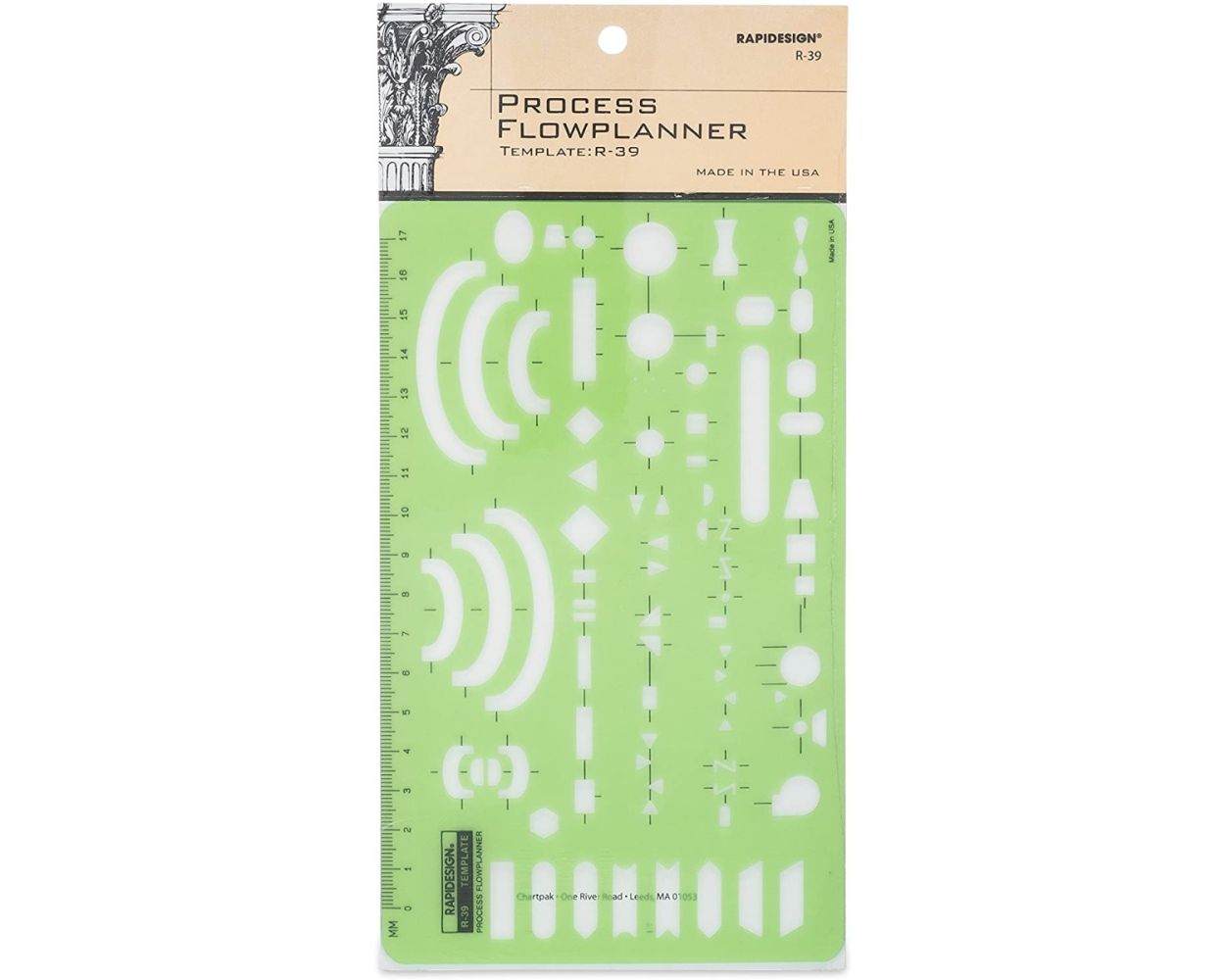

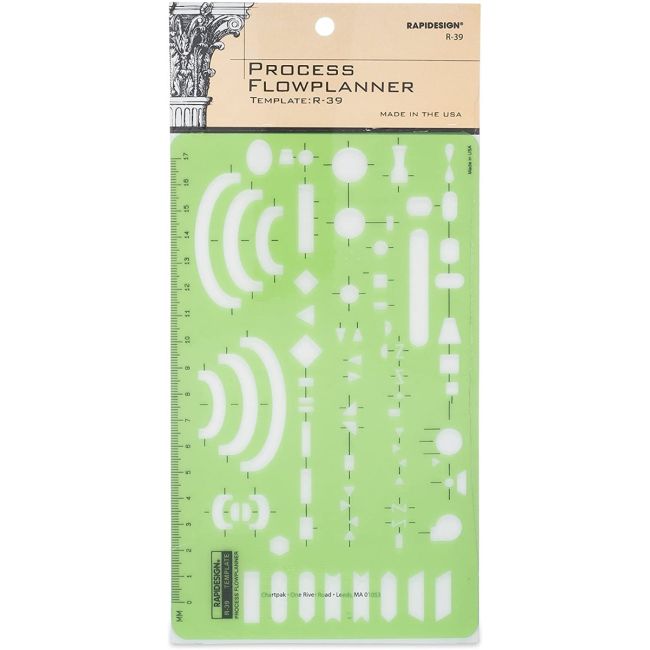

Chartpak Rapidesign Process Flow Planner Template (R39)
- Used to facilitate process and flow planning for piping systems
- Features commonly-used symbols such as data flags, pumps, jets, flow nozzles, vessel heads, etc.
- Incudes metric scale
- Translucent green template
- Made in USA
- Size: 7-11/16" x 4-5/8" x .030"
| Price | $16.95 |
|---|---|
| Customer Service | We're Here To Help! Call us anytime during our customer service hours... Monday through Friday - 8:30 am to 4:30 pm (Pacific) Order Questions:
TOLL FREE, 800-273-7375 (Outside the U.S. call 818-887-7828). Our Address: 8001 Canoga Avenue Canoga Park, CA 91304 US Phone: 800-275-2665 E-mail: sales@buildersbook.com
|
| Description | Chartpak Rapidesign Process Flow Planner Template (R39)
|
Check items to add to the cart or
-
![R-127 Civil Engineers' Radius Guide Template]()
R-127 Civil Engineers' Radius Guide TemplateSpecial Price $24.25 Regular Price $26.95 -
![ABC Architectural Template 3 5/6 In. x 5 9/16 In. , Scaled: 1/8 In.=1 In.]()
ABC Architectural Template 3 5/6 In. x 5 9/16 In. , Scaled: 1/8 In.=1 In.Special Price $13.45 Regular Price $14.95 -
![R-24 ARCHITECTURAL DETAILER TEMPLATE]()
R-24 ARCHITECTURAL DETAILER TEMPLATESpecial Price $15.25 Regular Price $16.95 -
![Architectural Aid Template - Rapidesign]()
Architectural Aid Template - RapidesignSpecial Price $17.05 Regular Price $18.95 -

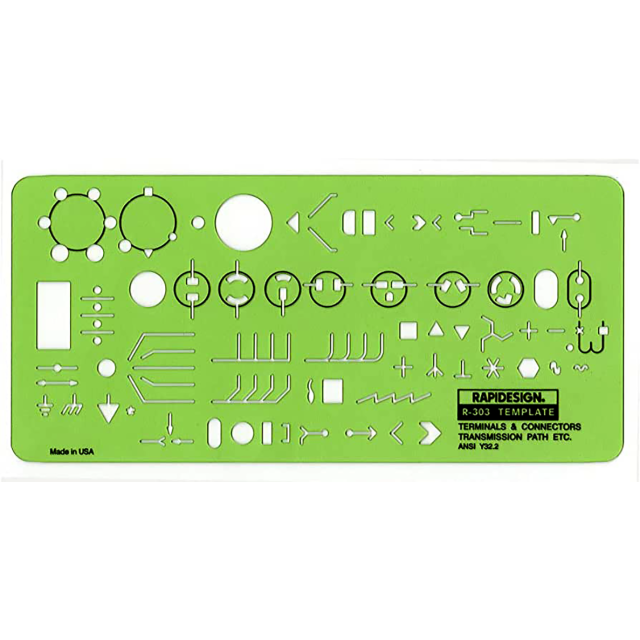

![TERMINALS & CONNECTORS, TRANSMISSION PATH, ETC TEMPLATE]()
