Shear Walls & Sheathing Lateral Loads Quick-Card Based on the 2015 IRC

Be the first to review this product

was $7.95 Special Price $7.15

Availability:

In stock

Product Code

9781622701315

Details

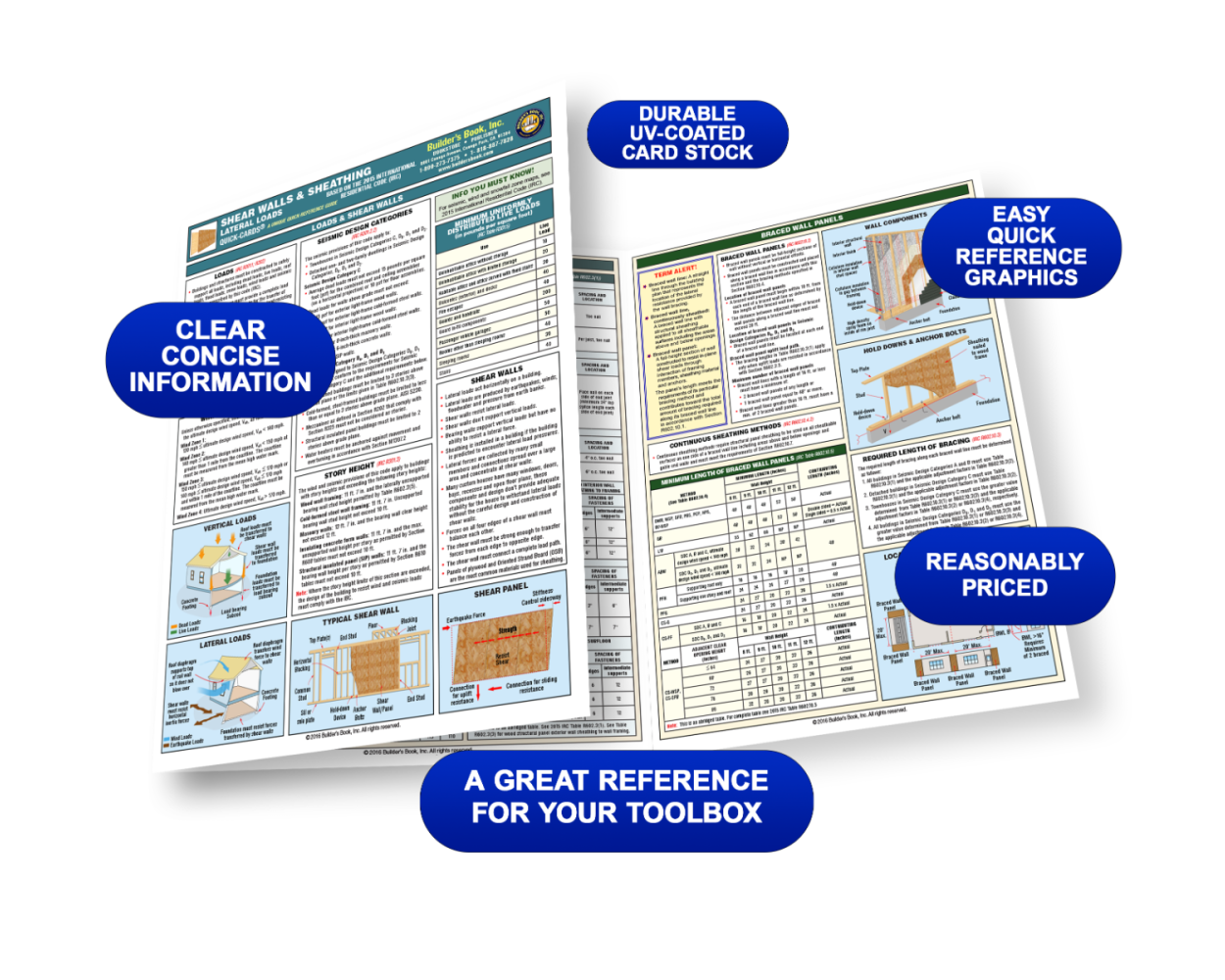

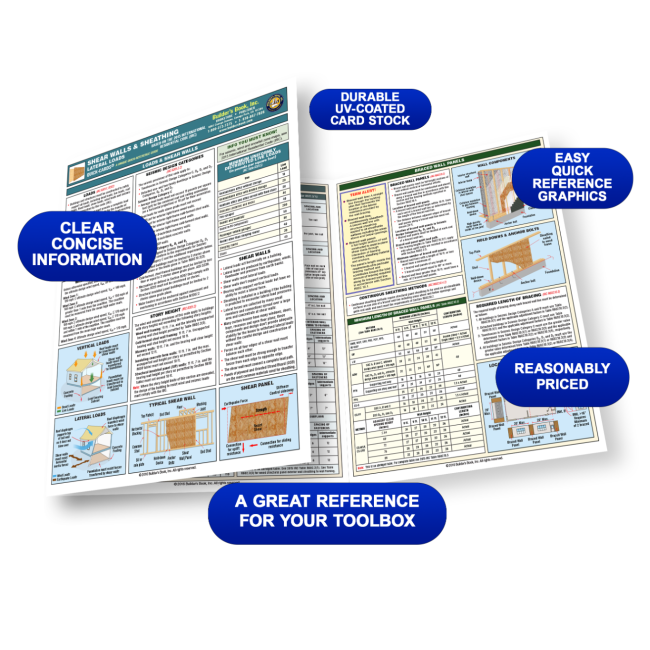

Shear Walls & Sheathing Lateral Loads Quick-Card Based on the 2015 International Residential Code (IRC)

This 6-page card quickly covers the construction essentials you need in loads and shear walls based on the new 2015 International Residential Code (IRC) for loads, shear walls & sheathing. Special sections focus on specific essentials for each area of framing.

Features:

LOADS & SHEAR WALLS

Loads
Wind Loads
Vertical Loads
Lateral Loads
Seismic Design Categories
Story Height
Shear Walls
Typical Shear Wall
Shear Panel
Minimum Uniformly Distributed Live Loads

SHEAR WALLS – GENERAL

Shear Wall Principles
Shear Wall - Internal Strength
Wind Force - Shear Wall Diagram
Shear Wall Forces
Shear Wall Failures

SHEATHING MATERIALS - PLYWOOD & ORIENTED STRAND BOARD (OSB)

Plywood & OSB Panels
Plywood vs. OSB
Plywood - Pros. & Cons.
Oriented Strand Board (OSB) - Pros. & Cons.

FRAMING & SHEATHING

Wall Bracing
Wood Wall Framing
Braced Wall Line Spacing
Wood Structural Panel Wall Sheathing Requirements used to Resist Wind Pressures
Fastening Schedule

BRACED WALL PANELS

Terms
Braced Wall Panels (IRC R602.10.2)
Minimum Length of Braced Wall Panels
Continuous Sheathing Methods.
Wall Components
Hold Down & Anchor Bolts
Required Length of Bracing
Location of Braced Wall Panels

BRACED WALL PANELS - BRACING METHODS & REQUIREMENTS

Bracing Methods
Bracing Requirements Based on Seismic Design Category

BRACED WALL PANEL CONNECTIONS TO FOOTINGS & ROOF FRAMING

Continuous Sheathing Methods
Braced Wall Panel Connections to Floor Framing
Braced Wall Panel Connections Foundation for SDC D0,D1 & D2
Braced Wall Panel Connection When Parallel to Floor/Ceiling Framing
Braced Wall Panel Connection When Perpendicular to Floor/Ceiling Framing
End Conditions for Braced Wall Lines with Continuous Sheathing
Connections to Roof Framing
Braced Wall Panel Connection to Perpendicular Rafters

Publisher: Builder's Book, Inc.1/06/2016
ISBN: 9781622701315/1622701313
