Structural Steel Detail Guide, Wheel Calculator

Special Price $17.95 Regular Price $19.95
Product Code
ALC2

Structural Steel Detail Guide, Wheel Calculator

Now updated to reflect changes from the 15th edition of the AISC manual.

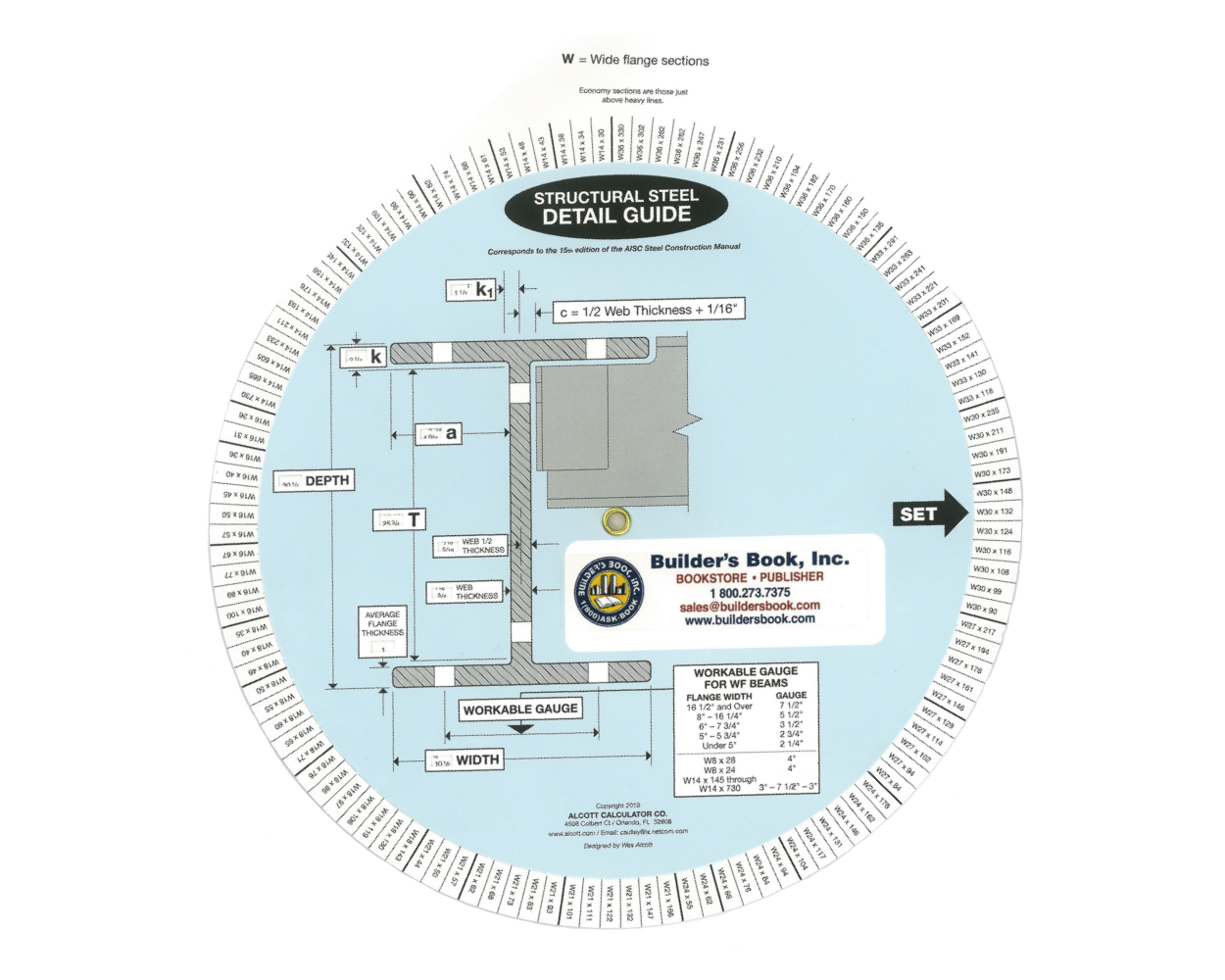

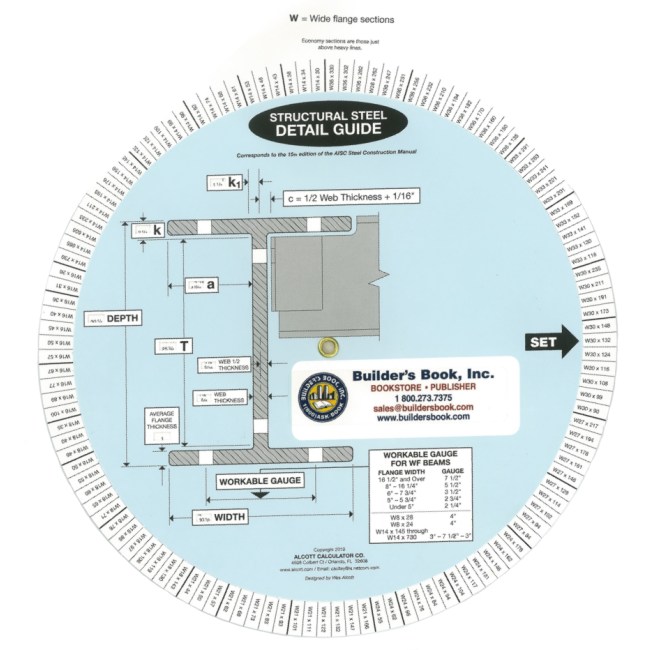

On both sides of this convenient slide-chart over 240 of the most popular structural sections including Wide Flange Beams, I Beams, Light Beams, Miscellaneous Beams and Columns, Junior Beams and Standard Channels are arranged in order of size and weight for quick, easy reference. At each setting of the wheel the following information is provided for quicker, easier detailing:

  • Weight of Beam
  • Nominal Size
  • Depth
  • Flange Width
  • Web Thickness
  • Web 1/2 Thickness
  • Coping Dimension a, t, k, k1, c
  • Hole Positioning Dimension g1

Actual Size: 10 1/2" Diameter
